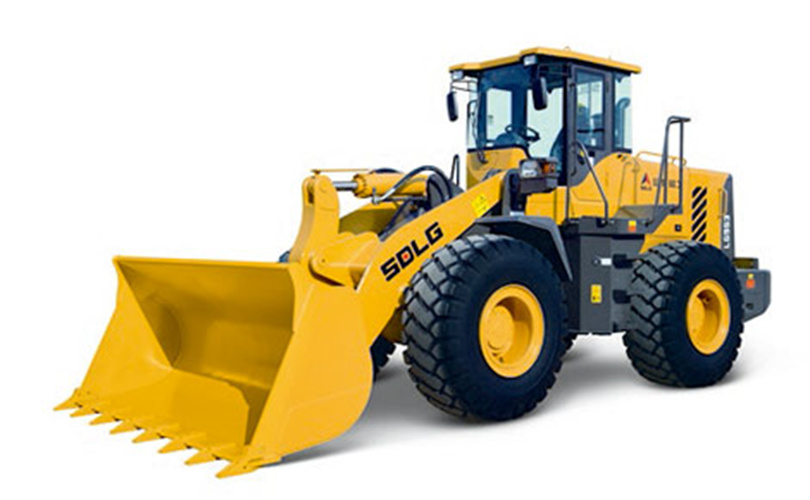

5Ton 2.8m³ SDLG Wheel Loader LG953

5Ton 2.8m³ SDLG Wheel Loader LG953

L953 is a medium and long wheelbase loader suitable for loading and unloading loose materials and hard materials. The whole machine has a moderate wheelbase, large breakout force, small turning radius, and has both heavy load and flexibility. It has a wide range of operations and strong applicability, and is widely used in sand and gravel factories, ports, construction sites, mines and other occasions.

Equipment Highlights

LG953 wheel loader, a long-wheelbase loader for loading bulk materials and hard materials, features large breakout force and tipping load enjoyed by long-wheelbase loader as well as the flexibility and small turning angle enjoyed by short-wheelbase loader, and is widely applied in areas like sand plants, ports, construction sites, mines etc.

• - 1. The wheel loader is equipped with the low-speed and high-torque China II Weichai engine featuring low fuel consumption, strong power and high reliability, for which a horizontally-mounted two-stage air filter of high reliability is installed.
• - 2. The cooling system is applied with the electrically-controlled thermal energy management module and has its radiator structure and intake/exhaust duct optimized, effectively reducing the engine water temperature and the oil temperature of the hydraulic system, and enhancing the cooling efficiency of the complete loader.
• - 3. The wheel loader is applied with the technologically-sophisticated SDLG planetary transmission with two forward gears and one reverse gear, enabling easy operation, good reliability and high efficiency; the drive axle is reinforced to provide large loading capacity and high reliability.
• - 4. The new steel cab applied offers for drivers a wide vision and a greater operating space, in which the full-coverage interioris configured to give a good sealing performance, and the optional A/C offers a good comfort.
• - 5. The digitalizedstepping instrument panel independently developed by SDLG is applied, offering an effective human-machine interaction.
• - 6. The wheel loader is equipped with the load-sensing mechanically-controlled hydraulic steering system, allowing easy control, and stable and reliableperformance. The hydraulic pipelines are of dual-sealing structure, further enhancing the tightness of hydraulic system.
• - 7. The wheel loader is applied with the reinforced rear/front frames which have gone through 200,000 cycles of fatigue intensifying tests, and the load of complete loader is reasonably distributed, both of which contribute to a high loading capacity and a good stability.
• - 8. The optimal design is conducted for the implement, which ensures large breakout force and high full-load coefficient; the main cutting board of the bucket is of the trapezoidal wear-resisting steel structure, and the bottom wear-resisting plate is of thickened structure, which ensures small shoveling resistance and good wear-resisting property.
